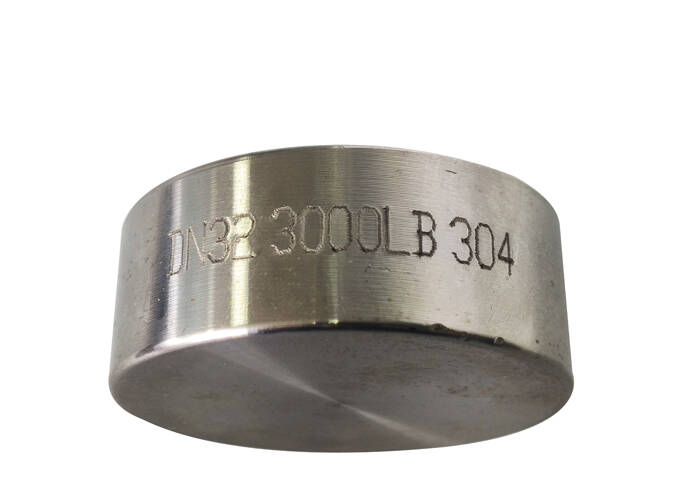

Stainless steel socket welded pipe cap pipe fittings forging sleeve joint cover plug 304
Zheheng steel deal with socket welded pipe cap pipe fittings forging sleeve joint cover plug 304, F304(S30408), F316(S31608), F321(S32168), 304L(S30403), F316L(S31603), 316L(high Mo), 00Cr17Ni14Mo2, F51(S22253), F60, F304H(S30409),
American standard
ASME / ANSI B16.9 factory-made seamless steel pipe butt-welded fittings
ASME / ANSI B16.11 socket welding and thread forging pipe fittings
ASME / ANSI B16.28 steel butt-welding small radius elbow and back bend
ASME B16.5 pipe flanges and flange fittings
MSS SP-43 forged stainless steel butt welded pipe fittings
MSS SP-83 socket welding and threaded union
MSS SP-97 overall reinforced socket for socket welding, thread and butt welding end
ASME B16.3-1998 malleable cast iron threaded pipe
Production Range
| Product name | 6000 psi socket weld pipe fitting end cap |
| Size | 1/8"-4" |
| Connection | female/male/welding |
| Material | Stainless steel: 304, F304(S30408), F316(S31608), F321(S32168), 304L(S30403), F316L(S31603), 316L(high Mo), 00Cr17Ni14Mo2, F51(S22253), F60, F304H(S30409), |
| F316H(S31609), F321H(S32169), F321H low S.P, M-400, F53, 316Ti, 317, 317L, 347, 347H(S34779), 310S, F304 low S.P, 304L low S.P, F316L low S.P, 347H low S.P, F5teel |
| Pressure | 2000lbs,3000lbs,6000lbs |
| Temperature | -29°~425° |
| Surface treatment | sandblast ,pickling |
| Application | Petroleum,chemical,machinery,boiler,electric ,shipbuilding,etc |
| Standard | ASME/ANSI,MSS,DIN,JIS,GB/T,SH,CB,JB,HG |
| Min order | 50 piece |
| Delivery time | 7days |
| Payment term | T/T,L/C |
| Packing | carton&wooden box&Pallet or as customer's requirements |
Inspection and Test Procedure
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
