Ss Seamless Welding Stainless Steel Pipe Fittings Cap Reducer Tee Elbow ANSI B16.9
Name : Pipe Fittings
Standard : ANSI B16.9 , MSS SP 75, EN10253, JIS B2313, GOST 17375, GOST 17379, GOST 17378,GOST 6533-78, GOST 17376, GOST 30753, DIN2605, DIN2615, DIN2616 etc
Type : Elbow, tee, reducer, cap, bend, stub end and so on.
Size : Seamless(SMLS):1/2"-36"
Weld:5"-110"
Thinckness : Sch5s,Std, xs, xxs, sch10, sch20, sch30, sch40, sch60, sch80, sch160, etc.
Material : Stainless steel: A403 wp304, A403 wp304L, A403 wp316, A403 wp316L, A403 wp321, 904L,SAF2205,uns31803 and so on.
Alloy steel: Wp11, wp22, wp12, wp5, wp9, wp91, 16Mo3 and so on.
Surface Black painting or color painting for carbon steel and alloy steel fittings
Blast or polished for stainelss steel fittings
Packing In wooded cases or pallets,or as for clients' requirements
Special design as your drawing
Certification : API CE and ISO 9001:2008
Test : Direct-reading Spectrograph,Hydrostatic testing machine,X-ray detector,UI trasonic flaw detector,Magnetic particle detector
Equipment : Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc
Applications : Petroleum, chemical, machinery, boiler,electric power, shipbuilding, papermaking, construction, etc
| Chemical Composition about stainless steel pipe Fittings | |
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| Mechanical Composition: |
| Grade | Tensile | Yield | %Age | Hardness (Max) |
| Strength Mpa, (Min) | Strength | Elongation |
| Mpa, (Min) | in 50mm |
| gauge length min | BHN | Rb |
| 304 | 515 | 205 | 40 | 201 | 92 |
Overview
Stainless steel pipe fittings are a general term for all kinds of stainless steel pipes connected to workpieces, and can be divided into different categories according to shape, purpose, and connection method. It has the characteristics of easy installation, high performance and durability, and is widely used in the construction and installation of various pipelines.
Stainless steel pipe fittings can be divided into: stainless steel tees, stainless steel flanges, stainless steel heads, stainless steel elbows, stainless steel pipe caps, stainless steel heads, etc.
Iron and steel are distinguished by their carbon content. Iron-carbon alloys with a carbon content of less than 2% are steel, and those with a carbon content of more than 2% are called iron. Steel is widely used because of its toughness, elasticity and rigidity. All the things I touch in life are steel, but people call them differently. For stainless steel, regardless of whether the magnet can be attracted or not, as long as it meets its quality standards, it is stainless steel.
Why choose us:
1. All pipe fittings are strictly implemented in accordance with the standards, accept any third-party inspection, and return service.
2. Before leaving the factory, 100% dimensional inspection, 100% spectral test, mechanical and mechanical performance test, pickling, pickling process are mainly aimed at the removal of surface grease and harmful substances, complete surface passivation to prevent oxidation. Some suppliers have not implemented ( Because the surface is not visible to the naked eye after sandblasting) annealing and solid solution (heat treatment), many goods on the market are not heat-treated. When the pipe fittings are in some cold or hot environments, the seam will slowly crack if it is not heat-treated. This process is invisible to the naked eye, surface sanding (many relatively inexpensive processes on the market), bevel ends, etc.
3. Normally, the individual weight of our company's pipe fittings is heavier than that on the market, (Ensure the back arc thickness) to avoid the parts of the same wall thickness that cannot be seen by the naked eye after the processing The pressure is guaranteed, because many suppliers choose the material to the maximum limit in order to minimize the cost.
RFQ:
1. Are you a trading company or a manufacturer?
Manufacturer and trading.
2. What are your main products?
All kinds of elbows, tees, caps, flanges, and steel pipes, etc with different stainless steel,nickel alloy materials.
3. Do you provide free samples?
We'd like to provide samples for your confirm, but we don't pay the cost of freight.
4. Why should I choose you?
* Contact us with your detailed inquiry, you will be replied within 6 hours.
* You are promised to obtain the best quality, price, and service.
* Wide excellent experiences with after-sale service.
* Every process will be checked by responsible QC which ensures every product's quality.

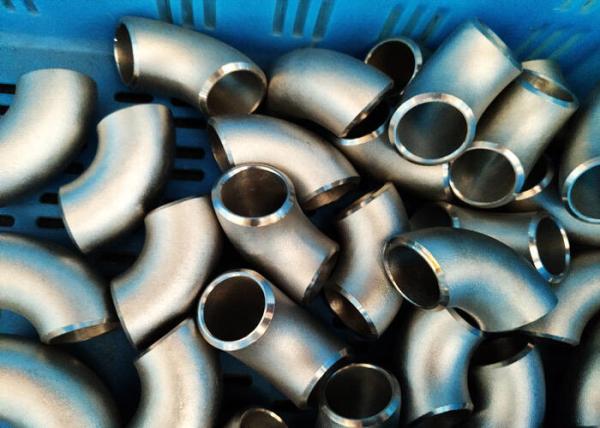

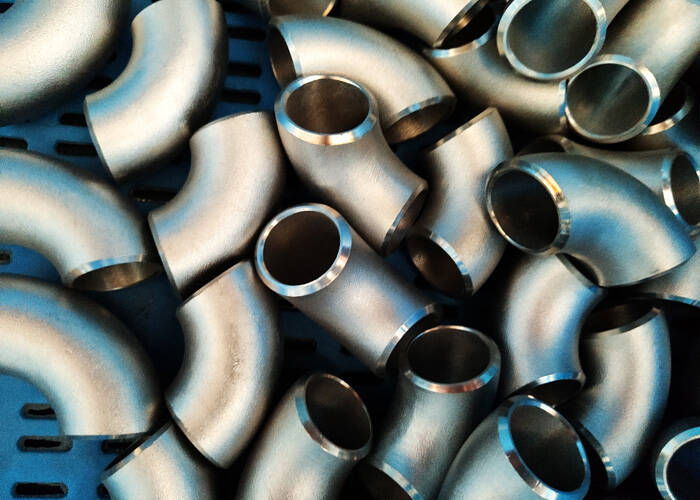

Product show:
