GOST17375 10X17H13M2T 316TI Stainless Steel Pipe Eblow Fittings 10KH17N13M2T Bend
1. Product name:90 degree stainless steel elbow
2. Size: 1/2"~48"
3. Standard: ANSI B16.9, ASME, JIS, DIN, EU, BS ,GOST
4. Certification: ISO9001, SGS
Product Name
90 degree stainless steel elbow
Material
All stainless steel material and nickel alloy
Wall thickness
sch10s sch20,sch30,sch40,STD,sch60,XS,sch80,sch120,XXS,etc
Standard
ANSI B16.9, ASME,A403 B16.9 JIS, DIN, EU, BS
Types
45D, 90D, 180D elbow,
Surface treatment
pickling ,annealing ,sandblast ,polish
Package
pallets, wooden cases, containers
Used
Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plart;ship buliding;water treament,etc
Chemical composition in % for grade 10KH17N13M2T ( 10Х17Н13М2Т )
| C | Si | Mn | Ni | S | P | Cr | Mo | Cu | - |
| max 0.1 | max 0.8 | max 2 | 12月14日 | max 0.02 | max 0.035 | 16 - 18 | 2--3 | max 0.3 | (5 С - 0.7) Ti, остальное Fe |
Mechanical properties under Т=20oС for grade 10KH17N13M2T ( 10Х17Н13М2Т )
| Assortment | Dimension | Direct. | sв | sT | d5 | y | KCU | Heat treatment |
| - | mm | - | MPa | MPa | % | % | kJ / m2 | - |
| Pipe cooling strain, GOST 9941-81 | | | 529 | | 35 | | | |
| Pipe hot strain, GOST 9940-81 | | | 529 | | 35 | | | |
| Bar, GOST 5949-75 | 60 | | 510 | 215 | 40 | 55 | | Guenching 1050 - 1100oC,Cooling air, |
| Wire, GOST 18143-72 | | | 540-830 | | 20-25 | | | |
| Forging, GOST 25054-81 | to 1000 | | 510 | 196 | 30-38 | 45-50 | | Guenching 1050 - 1100oC, water, |
| Sheet trick, GOST 7350-77 | | | 530 | 235 | 37 | | | Guenching 1030 - 1080oC,Cooling air, |
| Sheet thin, GOST 5582-75 | | | 530 | 225 | 38 | | | Guenching 1050 - 1080oC,Cooling air, |
| Sheet thin, GOST 4986-79 | | | 530 | | 20-40 | | | Guenching 1050 - 1080oC, air, |
products description
Dimensions of Long Radius Elbows
| Nominal Pipe Size (NPS) | Outside Diameter at Bevel | Center-to-End |
| 90 deg Elbows, A | 45 deg Elbows, B |
| % | 21.3 | 38 | 16 |
| % | 26.7 | 38 | 19 |
| 1 | 33.4 | 38 | 22 |
| 1% | 42.2 | 48 | 25 |
| 1-1/2" | 48.3 | 57 | 29 |
| 2 | 603 | 76 | 35 |
| 2-1/2" | 73 | 95 | 44 |
| 3 | 88.9 | 114 | 51 |
| | 101.6 | 133 | 57 |
| 4 | 114.3 | 152 | 64 |
| 5 | 141.3 | 190 | 79 |
| 6 | 168.3 | 229 | 95 |
| 8 | 219.1 | 305 | 127 |
| 10 | 273 | 381 | 159 |
| 12 | 323.8 | 457 | 190 |
| 14 | 355.6 | 533 | 222 |
| 16 | 406.4 | 610 | 254 |
| 18 | 457 | 686 | 286 |
| 20 | 508 | 762 | 318 |
| 22 | 559 | 838 | 343 |
| 24 | 610 | 914 | 381 |
| 26 | 660 | 991 | 406 |
| 28 | 711 | 1 067 | 438 |
| 30 | 762 | 1 143 | 470 |
| 32 | 813 | 1 219 | 502 |
| 34 | 864 | 1 295 | 533 |
| 36 | 914 | 1 372 | 565 |
| 38 | 965 | 1 448 | 600 |
| 40 | 1 016 | 1 524 | 632 |
| 42 | 1067 | 1 600 | 660 |
| 44 | 1 118 | 1 676 | 695 |
| 46 | 1 168 | 1 753 | 727 |
| 48 | 1 219 | 1 829 | 759 |
GENERAL NOTE: All dimensions are in millimeters.
Product Tags:
|
|

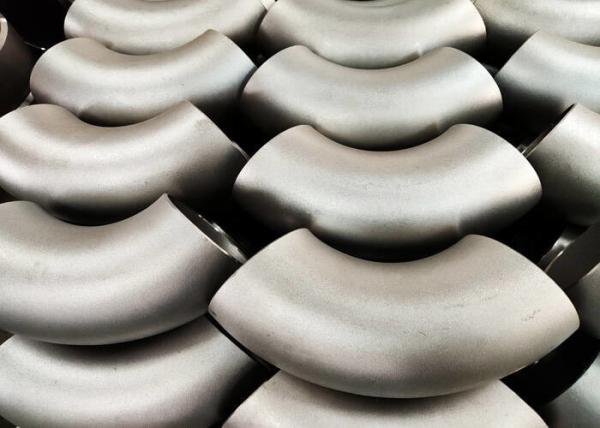

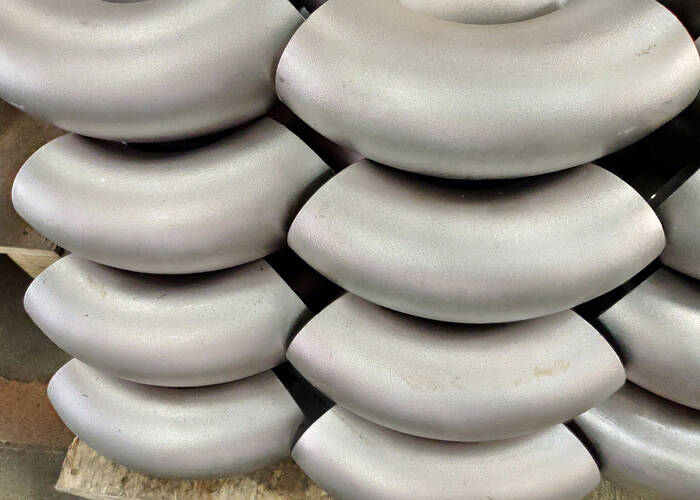

10KH17N13M2T Stainless Steel Pipe Elbow Images
|
